Six Stages. One Outcome:
99.99% SiO₂.
Mine to mill to port. Full supply chain transparency.

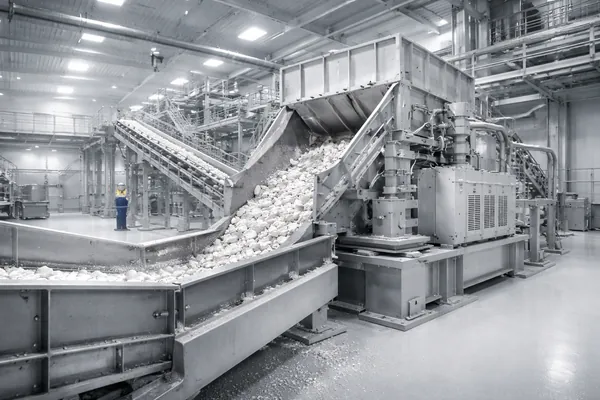

Primary Crushing
Raw quartz ore is fed into primary and secondary crushers, reducing run-of-mine material to 5–10mm. Screening efficiency exceeds 90%, ensuring consistent feed size for subsequent grinding stages.

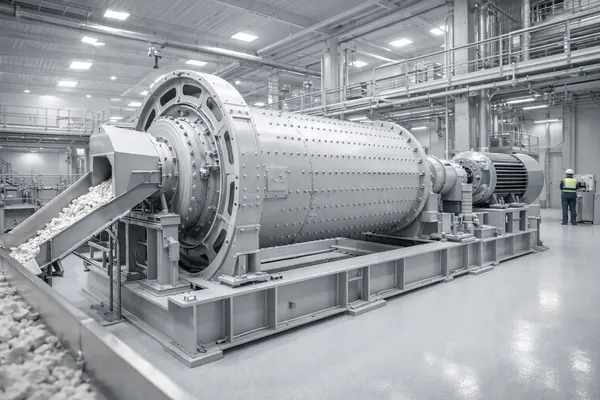

Grinding & Classification
Jaw-crushed material enters rod mills and ball mills for precision size reduction to 20 mesh, 100 mesh, or custom micron targets. Classification circuits separate on-spec material from oversize, which is returned for re-grinding.

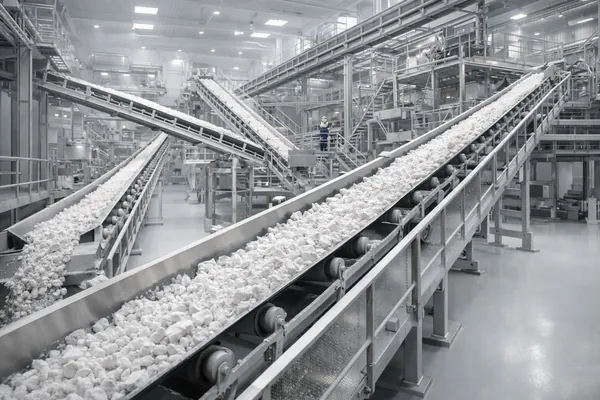

Physical Purification
Attrition scrubbers agitate quartz particles under high-density slurry conditions, stripping clay coatings, iron staining, and fine mud inclusions from particle surfaces. Desliming circuits remove sub-10-micron fines before downstream processing.
Magnetic Separation
High-intensity magnetic separators remove paramagnetic iron-bearing minerals including hematite, goethite, and iron-stained inclusion particles. This stage is critical for meeting Fe₂O₃ specifications required by photovoltaic and optical fiber applications.
Flotation
Froth flotation with selective collectors removes residual non-magnetic silicate impurities including mica, feldspar, and chlorite. The process uses non-toxic reagents with full effluent treatment before discharge.
Chemical Purification
Controlled acid leaching with dilute HCl and HF dissolves residual metallic oxide inclusions from grain surfaces and intracrystalline fluid inclusions. Post-acid washing with deionized water and drying brings the material to specification for semiconductor-grade and optical applications.
Built to Scale With Your Demand
Mine to Port. Full Transparency.
Every stage from extraction to export is operated, monitored, and documented by Max Minerals — no third-party intermediaries.
Mine Site
Raw vein quartz extracted from Mahagama, Sabaragamuwa Province
Crushing
Reduced to 5–10mm with 90%+ screening efficiency
Grinding
Precision grinding to 20–200 mesh custom targets
Purification
6-stage scrubbing, magnetic separation, acid treatment
Quality Lab
Full chemical analysis and COA issued per batch
Packaging
1MT FIBC bags, moisture-sealed for safe transport
Hambantota Port
FOB export to all major Asian ports
10 Million Metric Tonnes of Secured Reserves
Max Minerals holds full mining rights over Precambrian vein quartz deposits in Southern Sri Lanka. These geological formations — among the oldest and purest on the planet — provide a long-term, consistent supply of raw material for high-purity processing.
Need Custom Grades or Bulk Volumes?
Tell us your specification. We engineer the process to match your application requirements.
